Ball Valve

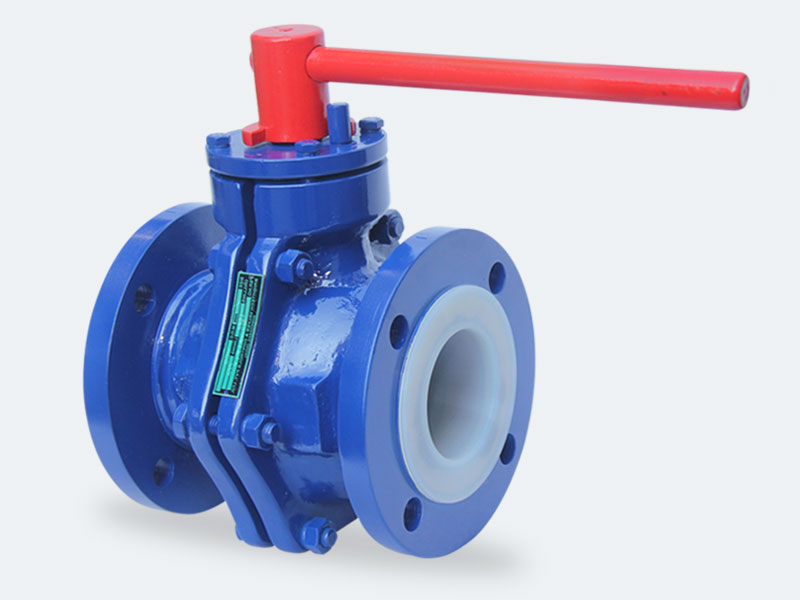

Briflon® lined Ball Valves are generally made from Cast Ductile Iron with lining. It is a full port, Two PC Design, Bolted Body Construction with Integral floating Ball Stem Unit, Replaceable Seat, Bubble Tight Shut off, Glandless Design, Maintenance Free, Full Flow Efficient, Low Torque manually lever operated for easy operation. Confirming to mfg. std. of BS 5153 and testing std. of BS 6755 part 1.

  • Cross-Section Drawing
  • Design Features & Benefits
  • Dimension (MM) & Test Pressure
  • Operating Characteristic
  • Lining Specification
  • Optional Accessories
  • Advantage
SR.NO. PART NAME MATERIAL
1 BODY ASTM A395 DUCTILE IRON + PFA/FEP LINING
2 INTEGRAL BALL WITH LINING WCB/CF8/CF8M + PFA/FEP LINING
3 TOP COVER ASTM A 216 GR WCB
4 STOPPER PIN ASTM A 216 GR WCB
5 LEVER M.S
6 LEVER BOSS ASTM A 216 GR WCB
7 SEAT RING PTFE
8 CHEVRON SEALING SET PTFE
9 DIAPHRAGM PTFE
10 DIAPHRAGM BACK UP SS 304
11 WASHER M.S
12 DISC SPRING SPRING STEEL
13 AL. CAP SCREWED C.S
14 HEX. HEAD SCREWED C.S
15 STUD & NUT ASTM A 193 GR B7 & ASTM A194 GR 21-1

Liner Locking

The lining is securely locked into the deep machined groove slot into the body & holes in casting ball under melting processible of FEP or PFA. This prevents liner to collapse or blow out under full vacuum/high pressure/temperature applications.

Integral Ball & Stem

Encapsulated one PC design ball & stem. No possibility of rupture of ball & stem joint. Ensure trouble free frequent operations.

Two PC Design Body

Two PC Design Bolted Body Construction with Stainless Steel Fasteners, minimize the joint leakages.

Low Torque Operation

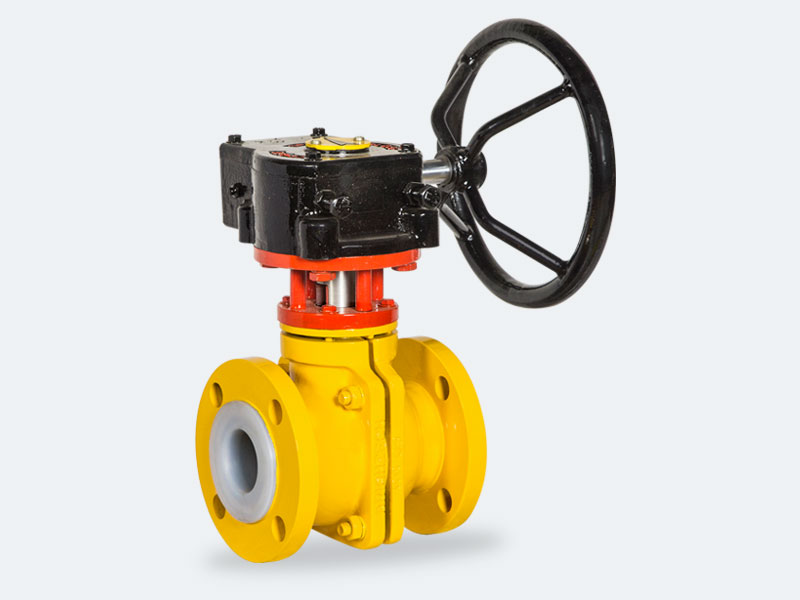

The contact area (sealing area) of ball with seat is very less, thus operating torque is much lower than the plug valve. Lever is compactly designed to operate the valve with very low torque. The valve above 4” size are offered with worm gear box actuation for smooth operation.

Standard Design

The “Briflon®” fully lined ball valve are designed in accordancewith flange dimension of ANSI B16.5, & face to face dimension of ANSI B16.10 permits these valves to replace with any standard ball valves without altering existing piping.

Full Port Design

Minimize the Pressure drop and increase the flow capacities

DIMENSION(MM)-150#

SIZE (NB) A
15 127
20 127
25 127
40 165
50 178
80 203
100 229
150 267

TEST PRESSURE

BODY (HYDRO) 20 Kg/cm2g (Before Lining)
SEAT (HYDRO) 10 Kg/cm2g (Before Lining)
SEAT (PNEUMATIC) 07 Kg/cm2g
Size 25 40 50 80 100 150
Torque (NM) 13 14 25 45 80 G.Box
Cv 55 200 275 650 1300 2850
TYPE PFA/FEP
SPARK TEST 15 K.V D.C
THICKNESS 3.0 MM OVER ALL WETTED PARTS
